颅脑外伤去骨瓣减压术后并发脑积水的预测模型建立与验证

doi:10.3877/cma.j.issn.2095-9141.2020.06.003

目的

基于临床资料建立并验证创伤性颅脑损伤（TBI）去骨瓣减压（DC）术后并发脑积水（PTH）的预测模型。

方法

选取解放军联勤保障部队第九〇四医院神经外科自2010年1月至2019年12月诊治的符合纳入条件的451例TBI患者，随访6个月后根据PTH诊断标准分为PTH组（127例）和无PTH组（324例），分析与之可能相关的15项因素。采用最小绝对收缩和选择算子（LASSO）回归降低数据维度和筛选预测因子。纳入多因素Logistic回归分析后建立预测模型并制作列线图，受试者工作特征曲线（ROC）和校准曲线用于检测模型的区分度和拟合优度，决策曲线分析（DCA）评价模型的临床适用性。

结果

LASSO回归筛选出5个预测因子并用于构成模型。经过验证，模型的ROC曲线下面积为0.762。校准曲线显示预测概率与实际概率有很好的一致性。DCA表明模型在一定范围内的临床适用性。

结论

本研究建立一个PTH的预测模型，具有良好的区分度、拟合优度和临床适用性，有利于高危患者的识别和针对性随访干预。

关键词: 去骨瓣减压, 创伤性脑积水, 列线图, 预测模型

Objective

To establish and verify the prediction model of post-traumatic hydrocephalus (PTH) after decompressive craniotomy (DC) of traumatic brain injury (TBI) based on clinical data.

Methods

Four hundred and fifty-one eligible TBI cases admitted to Neurosurgery Department of the 904^st Hospital of the Joint Service Support Force of the PLA from January 2010 to December 2019 were collected. After 6 months follow-up, according to the diagnostic criteria of PTH, the patients were divided into PTH group (n=127) and non-PTH group (n=324), and 15 factors related to PTH were analyzed. The least absolute shrinkage and selection operator (LASSO) regression was used to reduce the data dimension and filter the prediction factors. The multivariate logistic regression was used to establish the prediction model and constructe nomogram. Receiver operating characteristic (ROC) curve and calibration curve are respectively used to detect the discrimination and goodness of fit of the model. Decision curve analysis (DCA) was used to evaluate the clinical applicability of the prediction model.

Results

Five predictors were screened out by LASSO regression and constituted a model. After verification, the area under the curve of ROC was 0.762. The calibration curve showed that the predicted probability was in good agreement with the actual probability. DCA showed the clinical applicability of the model in a certain range.

Conclusion

This study established a prediction model of PTH, which has good differentiation, goodness of fit and clinical applicability, and is conducive to the the identification of high-risk patients and targeted follow-up intervention.

Key words: Decompressive craniotomy, Post-traumatic hydrocephalus, Nomogram, Prediction model

表1 451例TBI患者DC术后发生PTH的单因素分析

项目		无PTH组(n=324)	PTH组(n=127)	χ²/Z值	P值
性别[例(%)]				0.125	0.723
	男	240(74.1)	92(72.4)
	女	84(25.9)	35(27.6)
年龄[岁，M(Q_R)]		48.0(26.0)	50.0(24.0)	-1.460	0.144
开放性TBI[例(%)]				0.006	0.938
	是	45(13.9)	18(14.2)
	否	279(86.1)	109(85.8)
高血压[例(%)]				0.863	0.353
	有	59(18.2)	28(22.0)
	无	265(81.8)	99(78.0)
糖尿病[例(%)]				0.769	0.380
	有	14(4.3)	8(6.3)
	无	310(95.7)	119(93.7)
术前GCS评分[分，例(%)]				13.453	<0.001
	≤6	179(55.2)	94(74.0)
	>6	145(44.8)	33(26.0)
术前Fisher分级[例(%)]				25.147	<0.001
	Ⅰ级	125(38.6)	27(21.3)
	Ⅱ级	106(32.7)	33(26.0)
	Ⅲ级	56(17.3)	36(28.3)
	Ⅳ级	37(11.4)	31(24.4)
脑室出血[例(%)]				6.492	0.011
	有	18(5.6)	16(12.6)
	无	306(94.4)	111(87.4)
脑中线移位[cm，例(%)]				1.258	0.533
	<0.5	88(27.2)	28(22.0)
	0.5~1	142(43.8)	59(46.5)
	>1	94(29.0)	40(31.5)
去骨瓣减压[例(%)]				21.759	<0.001
	单侧	281(86.7)	86(67.7)
	双侧	43(13.3)	41(32.3)
骨窗疝[例(%)]				16.671	<0.001
	有	40(12.3)	36(28.3)
	无	284(87.7)	91(71.7)
颅内感染[例(%)]				12.159	<0.001
	有	56(17.3)	41(32.3)
	无	268(82.7)	86(67.7)
术后昏迷时间[d，例(%)]				54.707	<0.001
	<7	134(41.4)	16(12.6)
	7~30	108(33.3)	35(27.6)
	>30	82(25.3)	76(59.8)
硬膜下积液[例(%)]				46.224	<0.001
	无	202(62.3)	48(37.8)
	同侧	74(22.8)	24(18.9)
	对侧	10(3.1)	6(4.7)
	双侧	28(8.6)	32(25.2)
	半球间	10(3.2)	17(13.4)
去骨瓣面积[cm²，M(Q_R)]		81.4(32.4)	91.5(63.7)	-3.518	<0.001

表1 451例TBI患者DC术后发生PTH的单因素分析

项目		无PTH组(n=324)	PTH组(n=127)	χ²/Z值	P值
性别[例(%)]				0.125	0.723
	男	240(74.1)	92(72.4)
	女	84(25.9)	35(27.6)
年龄[岁，M(Q_R)]		48.0(26.0)	50.0(24.0)	-1.460	0.144
开放性TBI[例(%)]				0.006	0.938
	是	45(13.9)	18(14.2)
	否	279(86.1)	109(85.8)
高血压[例(%)]				0.863	0.353
	有	59(18.2)	28(22.0)
	无	265(81.8)	99(78.0)
糖尿病[例(%)]				0.769	0.380
	有	14(4.3)	8(6.3)
	无	310(95.7)	119(93.7)
术前GCS评分[分，例(%)]				13.453	<0.001
	≤6	179(55.2)	94(74.0)
	>6	145(44.8)	33(26.0)
术前Fisher分级[例(%)]				25.147	<0.001
	Ⅰ级	125(38.6)	27(21.3)
	Ⅱ级	106(32.7)	33(26.0)
	Ⅲ级	56(17.3)	36(28.3)
	Ⅳ级	37(11.4)	31(24.4)
脑室出血[例(%)]				6.492	0.011
	有	18(5.6)	16(12.6)
	无	306(94.4)	111(87.4)
脑中线移位[cm，例(%)]				1.258	0.533
	<0.5	88(27.2)	28(22.0)
	0.5~1	142(43.8)	59(46.5)
	>1	94(29.0)	40(31.5)
去骨瓣减压[例(%)]				21.759	<0.001
	单侧	281(86.7)	86(67.7)
	双侧	43(13.3)	41(32.3)
骨窗疝[例(%)]				16.671	<0.001
	有	40(12.3)	36(28.3)
	无	284(87.7)	91(71.7)
颅内感染[例(%)]				12.159	<0.001
	有	56(17.3)	41(32.3)
	无	268(82.7)	86(67.7)
术后昏迷时间[d，例(%)]				54.707	<0.001
	<7	134(41.4)	16(12.6)
	7~30	108(33.3)	35(27.6)
	>30	82(25.3)	76(59.8)
硬膜下积液[例(%)]				46.224	<0.001
	无	202(62.3)	48(37.8)
	同侧	74(22.8)	24(18.9)
	对侧	10(3.1)	6(4.7)
	双侧	28(8.6)	32(25.2)
	半球间	10(3.2)	17(13.4)
去骨瓣面积[cm²，M(Q_R)]		81.4(32.4)	91.5(63.7)	-3.518	<0.001

图1 基于LASSO回归的因素变量选择

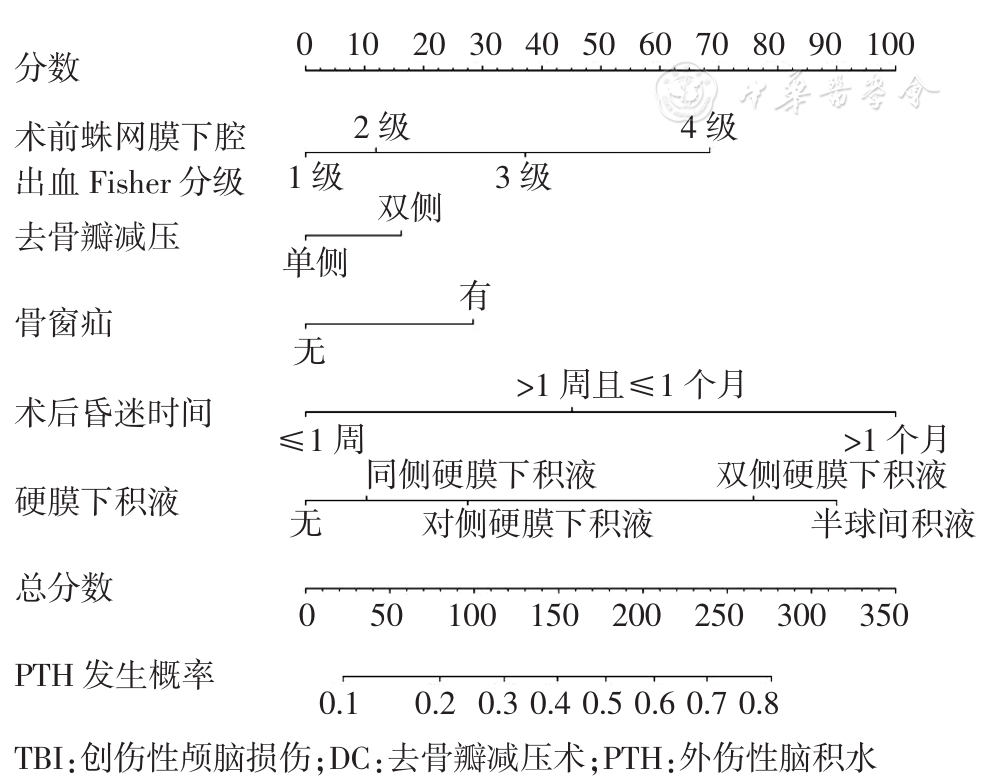

图2 基于5个预测因子建立的预测TBI患者DC术后发生PTH的列线图

表2 TBI患者DC术后发生PTH的Logistic回归分析

变量		标准误	β	Wald值	OR(95%CI)	P值
术前Fisher分级
	Ⅰ级				1(Ref)
	Ⅱ级	0.315	0.168	0.284	1.183(0.638~2.196)	0.594
	Ⅲ级	0.337	0.525	2.416	1.690(0.872~3.274)	0.120
	Ⅳ级	0.356	0.966	7.370	2.628(1.308~5.280)	0.007
去骨瓣减压
	单侧				1(Ref)
	双侧	0.542	0.229	0.542	1.257(0.684~2.311)	0.462
骨窗疝
	无				1(Ref)
	有	0.300	0.401	1.790	1.493(0.830~2.686)	0.181
术后昏迷时间
	<7 d				1(Ref)
	7~30 d	0.345	0.636	3.408	1.890(0.961~3.714)	0.065
	>30 d	0.343	1.411	16.875	4.100(2.091~8.038)	<0.001
硬膜下积液
	无				1(Ref)
	同侧	0.310	0.146	0.639	1.157(0.630~2.124)	0.639
	对侧	0.587	0.388	0.508	1.474(0.467~4.653)	0.508
	双侧	0.342	1.071	0.002	2.917(1.492~5.705)	0.002
	半球间	0.470	1.270	0.007	3.560(1.416~8.948)	0.007
常量		0.342	-2.511	0.000	0.081	<0.001

表2 TBI患者DC术后发生PTH的Logistic回归分析

变量		标准误	β	Wald值	OR(95%CI)	P值
术前Fisher分级
	Ⅰ级				1(Ref)
	Ⅱ级	0.315	0.168	0.284	1.183(0.638~2.196)	0.594
	Ⅲ级	0.337	0.525	2.416	1.690(0.872~3.274)	0.120
	Ⅳ级	0.356	0.966	7.370	2.628(1.308~5.280)	0.007
去骨瓣减压
	单侧				1(Ref)
	双侧	0.542	0.229	0.542	1.257(0.684~2.311)	0.462
骨窗疝
	无				1(Ref)
	有	0.300	0.401	1.790	1.493(0.830~2.686)	0.181
术后昏迷时间
	<7 d				1(Ref)
	7~30 d	0.345	0.636	3.408	1.890(0.961~3.714)	0.065
	>30 d	0.343	1.411	16.875	4.100(2.091~8.038)	<0.001
硬膜下积液
	无				1(Ref)
	同侧	0.310	0.146	0.639	1.157(0.630~2.124)	0.639
	对侧	0.587	0.388	0.508	1.474(0.467~4.653)	0.508
	双侧	0.342	1.071	0.002	2.917(1.492~5.705)	0.002
	半球间	0.470	1.270	0.007	3.560(1.416~8.948)	0.007
常量		0.342	-2.511	0.000	0.081	<0.001

图3 预测模型的受试者工作特征曲线

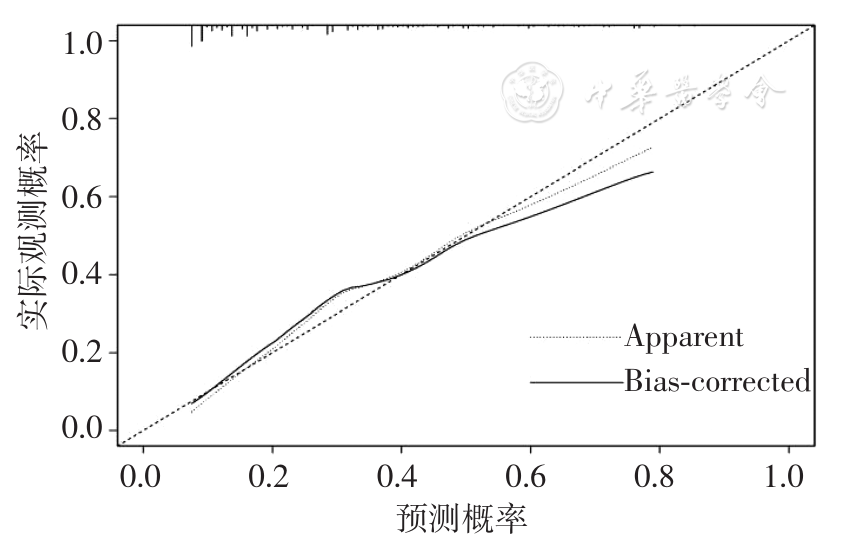

图4 预测模型的校准曲线

图5 预测模型的决策曲线分析

[1]	Gopalakrishnan MS, Shanbhag NC, Shukla DP, et al. Complications of decompressive craniectomy[J]. Front Neurol, 2018, 9: 977.
[2]	De Bonis P, Sturiale CL, Anile C, et al. Decompressive craniectomy, interhemispheric hygroma and hydrocephalus: a timeline of events?[J]. Clin Neurol Neurosurg, 2013, 115(8): 1308-1312.
[3]	Honeybul S, Ho KM. Incidence and risk factors for post-traumatic hydrocephalus following decompressive craniectomy for intractable intracranial hypertension and evacuation of mass lesions[J]. J Neurotrauma, 2012, 29(10): 1872-1878.
[4]	Ki HJ, Lee HJ, Lee HJ, et al. The risk factors for hydrocephalus and subdural hygroma after decompressive craniectomy in head injured patients[J]. J Korean Neurosurg Soc, 2015, 58(3): 254-261.
[5]	Chen H, Yuan F, Chen SW, et al. Predicting posttraumatic hydrocephalus: derivation and validation of a risk scoring system based on clinical characteristics[J]. Metab Brain Dis, 2017, 32(5): 1427-1435.
[6]	胡世颉，李兵，费舟.创伤性脑损伤术后并发脑积水的临床经验总结[J].中华神经创伤外科电子杂志, 2018, 4(1): 16-19.
[7]	王雷平，吴崇光，姚军.颅脑损伤去骨瓣减压术后并发创伤后脑积水的危险因素[J].中华创伤杂志, 2014, 30(4): 307-310.
[8]	Fisher CM, Kistler JP, Davis JM. Relation of cerebral vasospasm to subarachnoid hemorrhage visualized by computerized tomographic scanning[J]. Neurosurgery, 1980, 6(1): 1-9.
[9]	Kaen A, Jimenez-Roldan L, Alday R, et al. Interhemispheric hygroma after decompressive craniectomy: does it predict posttraumatic hydrocephalus?[J]. J Neurosurg, 2010, 113(6): 1287-1293.
[10]	Yuan Q, Wu X, Yu J, et al. Subdural hygroma following decompressive craniectomy or non-decompressive craniectomy in patients with traumatic brain injury: clinical features and risk factors[J]. Brain Inj, 2015, 29(7-8): 971-980.
[11]	Honeybul S, Ho KM. Long-term complications of decompressive craniectomy for head injury[J]. J Neurotrauma, 2011, 28(6): 929-935.
[12]	Kondziella D, Sonnewald U, Tullberg M, et al. Brain metabolism in adult chronic hydrocephalus[J]. J Neurochem, 2008, 106(4): 1515-1524.
[13]	Kim JH, Ahn JH, Oh JK, et al. Factors associated with the development and outcome of hydrocephalus after decompressive craniectomy for traumatic brain injury[J]. Neurosurg Rev, 2020, 1(17): e1-e8.
[14]	Tibshirani R. The lasso method for variable selection in the cox model[J]. Stat Med, 1997, 16(4): 385-395.
[15]	Tian HL, Xu T, Hu J, et al. Risk factors related to hydrocephalus after traumatic subarachnoid hemorrhage[J]. Surg Neurol, 2008, 69(3): 241-246.
[16]	Mohd Nor MA, Abdul Rahman NA, Adnan JS. Post-traumatic hydrocephalus[J]. Malays J Med Sci, 2013, 20(1): 95-96.
[17]	Ding J, Guo Y, Tian H. The influence of decompressive craniectomy on the development of hydrocephalus: a review[J]. Arq Neuropsiquiatr, 2014, 72(9): 715-720.
[18]	Waziri A, Fusco D, Mayer SA, et al. Postoperative hydrocephalus in patients undergoing decompressive hemicraniectomy for ischemic or hemorrhagic stroke[J]. Neurosurgery, 2007, 61(3): 489-494.
[19]	刘佰运.创伤性脑积水的诊治[J].中华神经创伤外科电子杂志, 2018, 4(3): 129-131.
[20]	杨勇，王鹏，李巧玉,等.去骨瓣减压术后骨窗疝的成因及防治[J].江苏医药, 2013, 39(4): 421-423.
[21]	Honeybul S, Ho KM. Decompressive craniectomy for severe traumatic brain injury: the relationship between surgical complications and the prediction of an unfavourable outcome[J]. 2014, 45(9): 1332-1339.
[22]	Fotakopoulos G, Tsianaka E, Siasios G, et al. Posttraumatic hydrocephalus after decompressive craniectomy in 126 patients with severe traumatic brain injury[J]. J Neurol Surg A Cent Eur Neurosurg, 2016, 77(2): 88-92.
[23]	Vickers AJ, Cronin AM, Elkin EB, et al. Extensions to decision curve analysis, a novel method for evaluating diagnostic tests, prediction models and molecular markers[J]. BMC Med Inform Decis Mak, 2008, 8(1): 53.
[24]	Balachandran VP, Gonen M, Smith JJ, et al. Nomograms in oncology: more than meets the eye[J]. Lancet Oncol, 2015, 16(4): 173-180.
[25]	Kammersgaard LP, Linnemann M, Tibæk M. Hydrocephalus following severe traumatic brain injury in adults. Incidence, timing, and clinical predictors during rehabilitation[J]. NeuroRehabilitation, 2013, 33(3): 473-480.
[26]	De Bonis P, Pompucci A, Mangiola A, et al. Post-traumatic hydrocephalus after decompressive craniectomy: an underestimated risk factor[J]. J Neurotrauma, 2010, 27(11): 1965-1970.
