中华神经创伤外科电子杂志 ›› 2026, Vol. 12 ›› Issue (03) : 149 -159. doi: 10.3877/cma.j.issn.2095-9141.2026.03.003

基础研究

抗氧化碳量子点对周围神经损伤的影响及机制研究
张江, 王波, 张斌()
  1. 710068 西安,西安医学院第三附属医院骨科
  • 收稿日期:2025-08-28 出版日期:2026-06-15
  • 通信作者: 张斌

Effects and mechanisms of antioxidant carbon quantum dots on peripheral nerve injury

Jiang Zhang, Bo Wang, Bin Zhang()

  1. Department of Orthopedics, the Third Affiliated Hospital of Xi’an Medical College, Xi’an 710068, China
  • Received:2025-08-28 Published:2026-06-15
  • Corresponding author: Bin Zhang
  • Supported by:
    National Natural Science Foundation of China Key Program(81830077)
引用本文:

张江, 王波, 张斌. 抗氧化碳量子点对周围神经损伤的影响及机制研究[J/OL]. 中华神经创伤外科电子杂志, 2026, 12(03): 149-159.

Jiang Zhang, Bo Wang, Bin Zhang. Effects and mechanisms of antioxidant carbon quantum dots on peripheral nerve injury[J/OL]. Chinese Journal of Neurotraumatic Surgery(Electronic Edition), 2026, 12(03): 149-159.

目的

制备具有抗氧化及免疫调节功能的氮掺杂碳量子点(NCQDs),通过构建坐骨神经损伤模型,评估其对周围神经损伤修复的影响,并探讨其相关机制。

方法

(1)体外实验:使用二烯丙基二甲基氯化铵、无水柠檬酸合成NCQDs,将NCQDs设置0、10、20、30 μg/mL 4个浓度组,分别为CON组、NCQDs-10组、NCQDs-20组及NCQDs-30组。取小鼠单核巨噬细胞白血病细胞系(RAW 264.7)按实验设计接种于培养板,待细胞贴壁并确认细胞状态良好后,加入相应浓度的NCQDs,分别继续培养1、4 d后检测细胞毒性,培养24 h后检测抗氧化性能。取5只C57幼鼠的背根神经节(DRG)神经元,采用DAPI/NF-200免疫荧光染色观察NCQDs对神经元生长的影响。用NCQDs分别处理DRG神经元12、24 h,验证其对神经元的细胞毒性和免疫调节性能。(2)体内实验:取6周龄C57小鼠构建坐骨神经损伤模型,采用随机数字表法分为对照组和NCQDs组,分别在神经损伤侧局部注射生理盐水与NCQDs。7 d后通过神经染色、脊髓病理切片等实验观察神经修复情况,28 d后通过神经电生理、足迹实验分析及腓肠肌切片染色进一步评估坐骨神经及建模侧肌肉的运动功能恢复情况,通过血清学指标及脏器HE染色评估NCQDs的体内安全性能。

结果

(1)体外实验:NCQDs具有良好的生物相容性,可大幅降低RAW264.7细胞活性,降低ROS表达水平,且30 d内ROS清除率稳定。Zeta电位检测显示,NCQDs的Zeta电位为+6.98 mV。ELISA检测显示,与CON组相比,NCQDs-10组、NCQDs-20组、NCQDs-30组的肿瘤坏死因子-α、白细胞介素(IL)-6、IL-8及IL-1β的表达水平均降低,差异有统计学意义(P<0.05)。(2)体内实验:与对照组相比,NCQDs组阳性神经元数目显著增多,损伤部位再生轴突数目增加、距离延长,动作电位潜伏期显著缩短,传导速度加快,差异均有统计学意义(P<0.05);行为学分析显示足迹面积、接触密度及足底压力显著改善,腓肠肌平均肌纤维直径显著增加,差异均有统计学意义(P<0.05)。2组小鼠的血液学、血清生化指标及心、肝、脾、肺、肾等主要脏器组织学检查均未见明显异常。

结论

NCQDs具有良好的体内体外安全性,可通过抗炎、抗氧化作用显著促进坐骨神经损伤的修复。

Objective

To develop nitrogen-doped carbon quantum dots (NCQDs) with antioxidant and immunomodulatory functions and evaluate their effects on peripheral nerve injury repair using a sciatic nerve injury model.

Methods

(1) In vitro experiment: NCQDs were synthesized using diallyldimethylammonium chloride and anhydrous citric acid. NCQDs were set to 4 concentration groups of 0, 10, 20, and 30 μg/mL, named CON group, NCQDs-10 group, NCQDs-20 group, and NCQDs-30 group. Mouse monocyte macrophage leukemia cell line (RAW 264.7) was inoculated into a culture plate according to the experimental design. After the cells adhered to the wall and the cell status was confirmed to be good, corresponding concentrations of NCQDs were added and cultured for 1 and 4 d, respectively, to detect cytotoxicity. After 24 h of culture, the antioxidant performance was detected. Five dorsal root ganglia (DRG) neurons from C57 mice were taken, and DAPI/NF-200 immunofluorescence staining was used to observe the effect of NCQDs on neuronal growth. NCQDs were used to treat DRG neurons for 12 and 24 h to verify their cytotoxicity and immunomodulatory properties on neurons. (2) In vivo experiment: A sciatic nerve injury model was established in 6-week-old C57 mice, which were randomly divided into a control group and a NCQDs group. Normal saline and NCQDs were locally injected into the injury site, respectively. At 7 d post-injury, nerve regeneration was assessed via nerve histology and spinal cord pathological sections. At 28 d post-injury, functional recovery of the sciatic nerve and ipsilateral hindlimb muscles were further evaluated using electrophysiology, footprint analysis, and gastrocnemius muscle histological staining. Serum biochemical parameters and H&E staining of major organs were performed to assess the in vivo biosafety of NCQDs.

Results

(1) In vitro experiment: NCQDs exhibited excellent biocompatibility and can significantly reduce RAW264.7 cell activity, decrease ROS expression levels, and maintain a stable ROS clearance rate within 30 d. Zeta potential detection showed that the Zeta potential of NCQDs was +6.98 mV. Enzyme-linked immunosorbent assay detection showed that compared with the CON group, the expression levels of tumor necrosis factor-α, interleukin (IL)-6, IL-8, and IL-1β in the NCQDs-10 group, NCQDs-20 group, and NCQDs-30 group were all reduced, and the differences were statistically significant (P<0.05). (2) In vivo experiment: Compared with the control group, the NCQDs group showed a significant increase in the number of positive neurons, an increase in the number and distance of regenerated axons at the injury site, a significant reduction in action potential latency, and an increase in conduction velocity, with statistically significant differences (P<0.05); Behavioral analysis showed significant improvements in footprint area, contact density, and plantar pressure, while the average diameter of gastrocnemius muscle fibers increased significantly, with statistically significant differences (P<0.05). Hematological and serum biochemical indicators, as well as histological examinations of major organs such as heart, liver, spleen, lungs, and kidneys in two groups of mice, showed no significant abnormalities.

Conclusions

NCQDs possess favorable biosafety both in vitro and in vivo, they significantly enhance sciatic nerve repair through combined anti-inflammatory and antioxidant mechanisms.

图1 小鼠坐骨神经损伤建模示意图A:正常坐骨神经;B:钳夹造模操作;C:钳夹损伤后
Fig.1 Schematic diagram of sciatic nerve injury modeling in mice

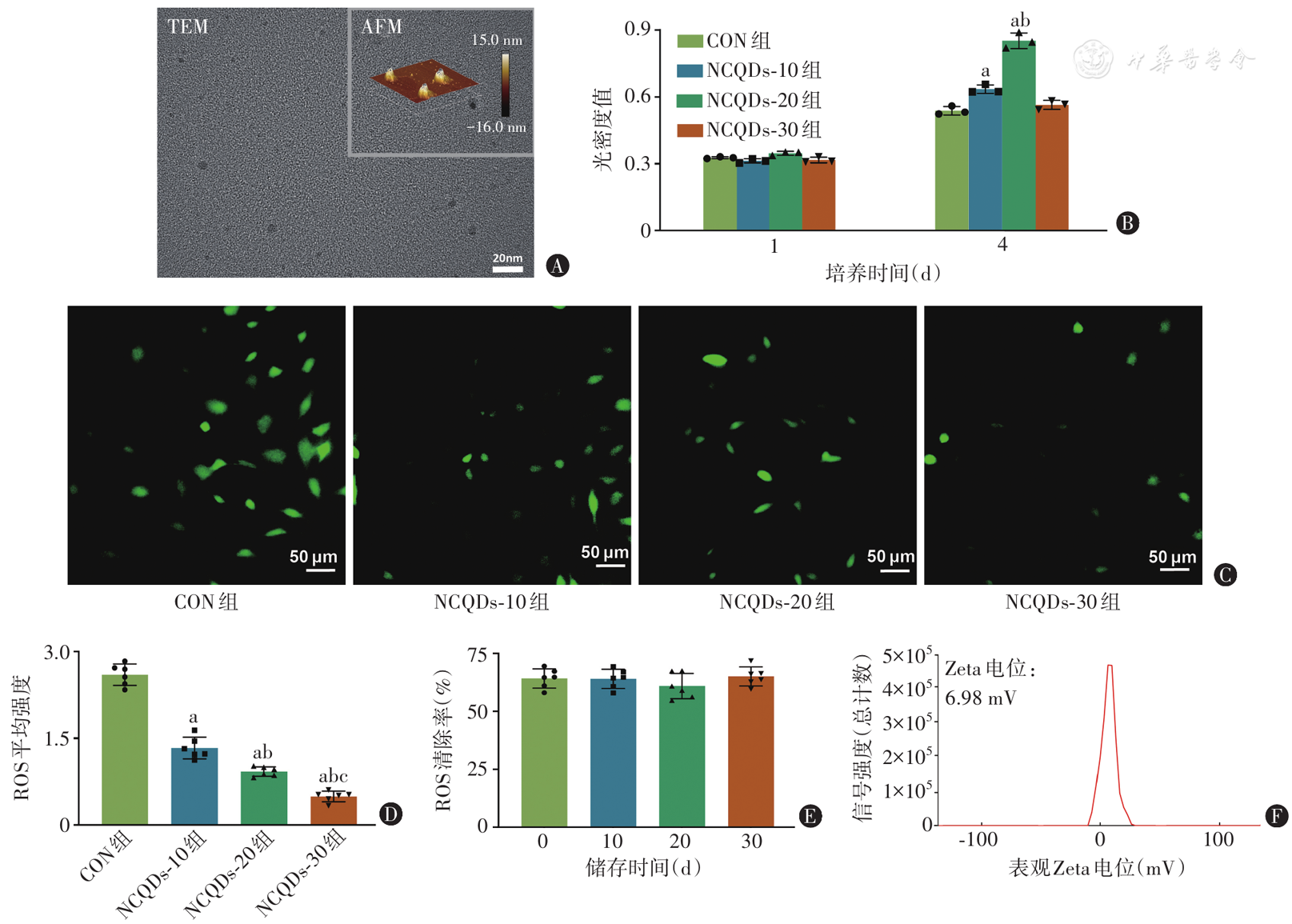

图2 NCQDs的形貌表征、细胞毒性及抗氧化活性A:NCQDs的TEM及AFM观察;B:RAW264.7细胞与不同浓度NCQDs共孵育1、4 d后的细胞活力(n=3);C:4组RAW264.7细胞ROS水平的荧光染色结果;D:4组RAW264.7细胞干预24 h的ROS水平定量分析(n=6);E:20 μg/mL的NCQDs储存不同时间点的抗ROS稳定性(n=6);F:NCQDs的Zeta电位测定;与CON组比较,aP<0.05;与NCQDs-10组比较,bP<0.05;与NCQDs-20组比较,cP<0.05;TEM:透射电子显微镜;AFM:原子力显微镜;NCQDs:氮掺杂碳量子点;ROS:活性氧
Fig.2 Morphological characterization, cytotoxicity, and antioxidant activity of NCQDs

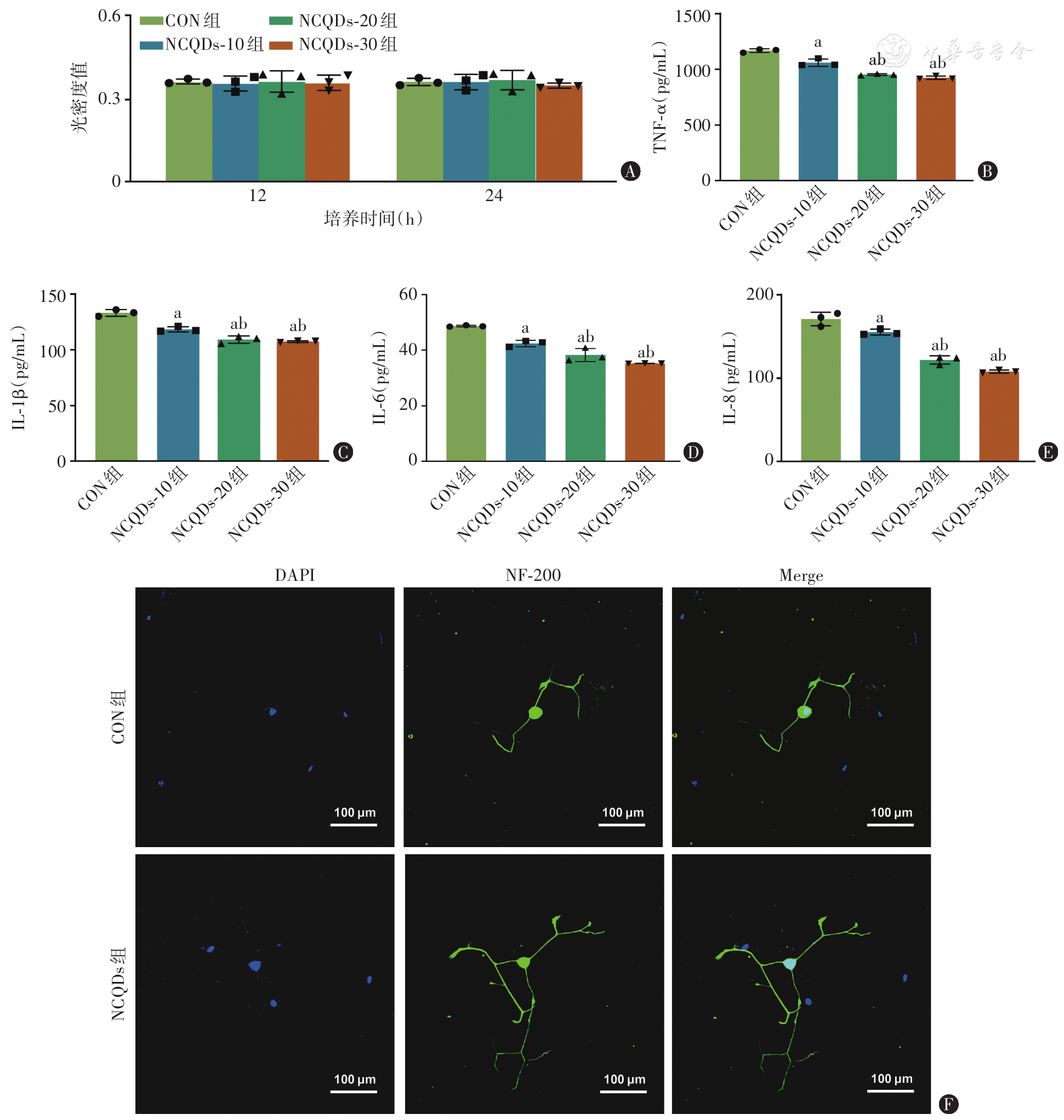

图3 NCQDs的免疫调节性能及对神经元的影响A:CCK-8法检测NCQDs干预12、24 h后神经元的细胞活力(n=3);B~E:NCQDs干预12 h对神经元促炎因子TNF-α(B)、IL-1β(C)、IL-6(D)及IL-8(E)表达水平的影响(n=3);F:NCQDs干预后神经元的免疫荧光染色;与CON组比较,aP<0.05;与NCQDs-10组比较,bP<0.05;NCQDs:氮掺杂碳量子点;TNF-α:肿瘤坏死因子;IL:白细胞介素
Fig.3 Immunomodulatory properties of NCQDs and their effects on neuronal cells

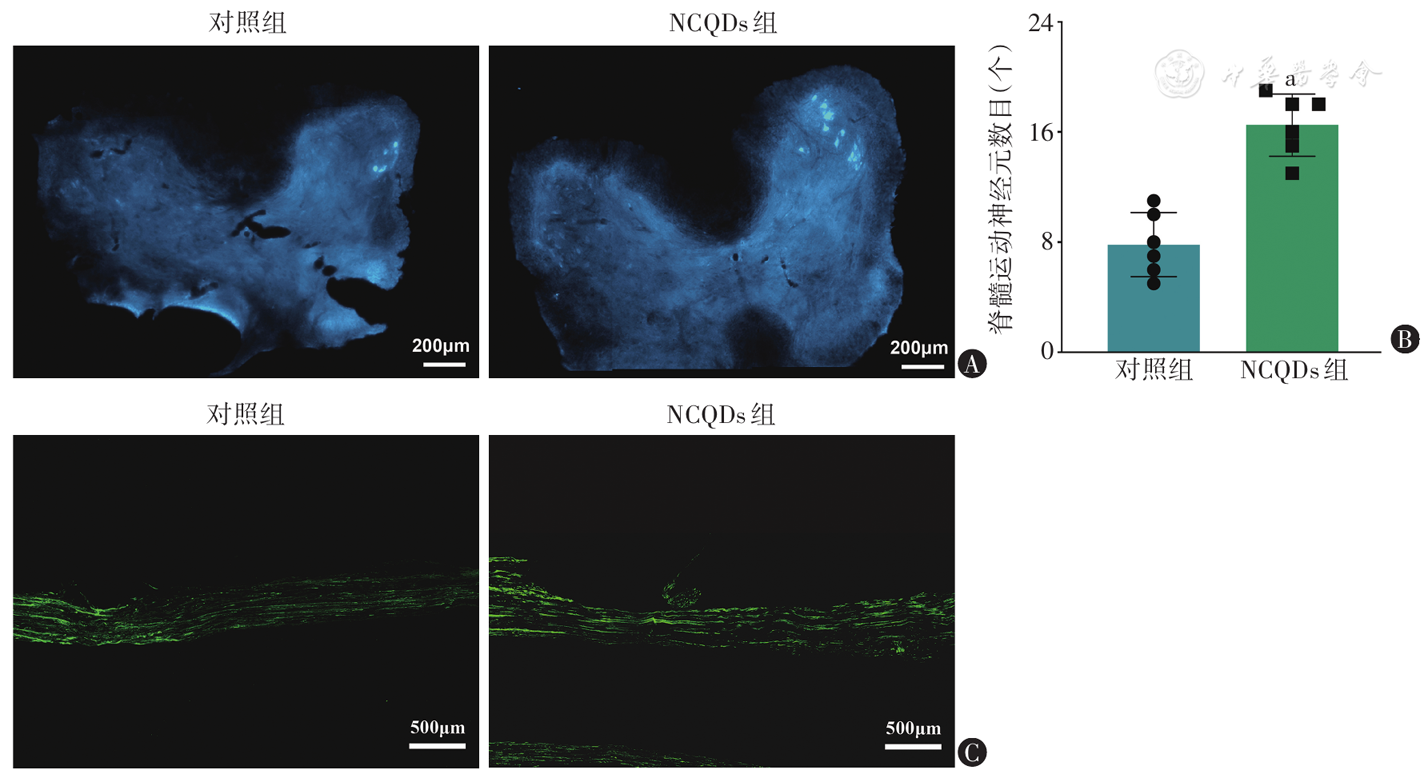

图4 NCQDs对神经损伤模型小鼠神经再生的影响A:脊髓冰冻切片荧光金逆行示踪;B:逆行标记阳性神经元数目统计(n=6);与对照组比较,aP<0.05;C:神经SCG-10免疫荧光染色;NCQDs:氮掺杂碳量子点
Fig.4 Effects of NCQDs on neural regeneration in a mouse model of neural injury

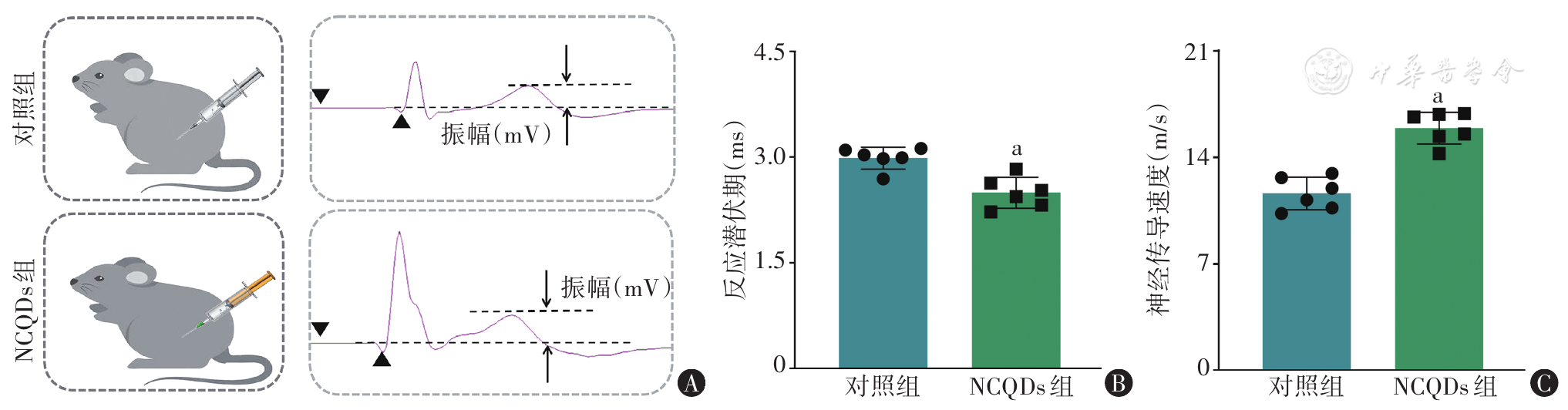

图5 NCQDs对神经损伤模型小鼠神经功能恢复的影响A:给药示意图及神经电生理检测;B:动作电位的潜伏期定量分析(n=6);C:神经传导速度定量分析(n=6);与对照组比较,aP<0.05;NCQDs:氮掺杂碳量子点
Fig.5 Effects of NCQDs on neural functional recovery in a mouse model of neural injury

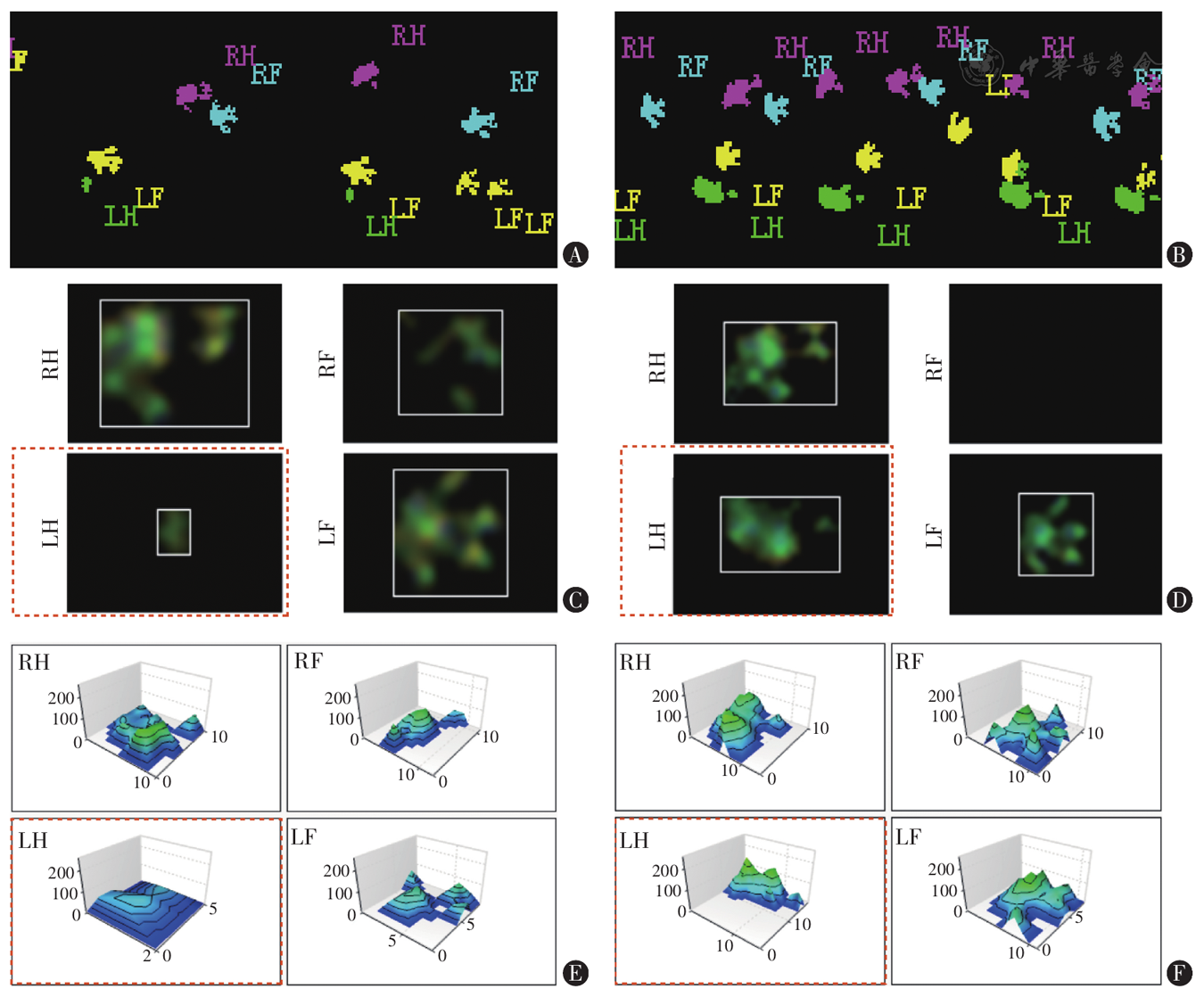

图6 神经损伤模型小鼠足迹实验分析A~B:对照组(A)、NCQDs组(B)小鼠的足迹分析;C~D:对照组(C)、NCQDs组(D)单个足迹截图分析;E~F:对照组(E)、NCQDs组(F)足迹压力云图;RH:右后肢;RF:右前肢;LH:左后肢;LF:左前肢;红色虚线框所选为建模侧后肢;NCQDs:氮掺杂碳量子点
Fig.6 Footprint experiment analysis of nerve injury model mice
表1 2组神经损伤模型小鼠血液学及血清生化指标比较(±s
Tab.1 Comparison of hematology and serum biochemical indicators between two groups of neural injury model mice (Mean±SD)
图7 NCQDs对小鼠靶肌肉形态的影响及体内生物安全性能验证A:腓肠肌Masson染色;B:平均肌纤维面积定量分析;与对照组比较,aP<0.05;C:心、肝、脾、肺、肾HE染色;NCQDs:氮掺杂碳量子点
Fig.7 Effects of NCQDs on mouse target muscle morphology and validation of the in vivo safety profile
[1]
徐如祥,邱文乔. 生物组装类脑生态位促进神经再生修复展望[J]. 中华神经创伤外科电子杂志, 2022, 8(1): 1-5. DOI: 10.3877/cma.j.issn.2095-9141.2022.01.001.
[2]
Wei C, Guo Y, Ci Z, et al. Advances of schwann cells in peripheral nerve regeneration: from mechanism to cell therapy[J]. Biomed Pharmacother, 2024, 175: 116645. DOI: 10.1016/j.biopha.2024.116645.
[3]
刘尧. 透明质酸/单宁酸复合动态多功能水凝胶用于周围神经损伤修复的研究[D]. 长春: 吉林大学, 2023.
[4]
Zhang X, Zhang Y, Chen Y, et al. Unraveling the immune system’s role in peripheral nerve regeneration: a pathway to enhanced healing[J]. Front Immunol, 2025, 16: 1540199. DOI: 10.3389/fimmu.2025.1540199.
[5]
Li L, Xu Y, Wang X, et al. Ascorbic acid accelerates Wallerian degeneration after peripheral nerve injury[J]. Neural Regen Res, 2021, 16(6): 1078-1085. DOI: 10.4103/1673-5374.300459.
[6]
Donato A, Ritchie FK, Lu L, et al. OSP-1 protects neurons from autophagic cell death induced by acute oxidative stress[J]. Nat Commun, 2025, 16(1): 300. DOI: 10.1038/s41467-024-55105-0.
[7]
Huo Y, Cheng Y, Dong X, et al. Pleiotropic effects of nitric oxide sustained-release system for peripheral nerve repair[J]. Acta Biomater, 2024, 182: 28-41. DOI: 10.1016/j.actbio.2024.05.012.
[8]
Yang X, Tang X, Jia G, et al. Multifunctional carbon quantum dots: Iron clearance and antioxidation for neuroprotection in intracerebral hemorrhage mice[J]. ACS Appl Mater Interfaces, 2023, 15(49): 56820-56833. DOI: 10.1021/acsami.3c13580.
[9]
Singh VK, Haq A, Tiwari M, et al. Approach to management of nerve gaps in peripheral nerve injuries[J]. Injury, 2022, 53(4): 1308-1318. DOI: 10.1016/j.injury.2022.01.031.
[10]
Kong Y, Shi W, Zhang D, et al. Injectable, antioxidative, and neurotrophic factor-deliverable hydrogel for peripheral nerve regeneration and neuropathic pain relief[J]. Applied Materials Today, 2021, 24: 101090. DOI: 10.1016/j.apmt.2021.101090.
[11]
Hoffman DB, Raymond-Pope CJ, Pritchard EE, et al. Differential evaluation of neuromuscular injuries to understand re-innervation at the neuromuscular junction[J]. Exp Neurol, 2024, 382: 114996. DOI: 10.1016/j.expneurol.2024.114996.
[12]
Liu X, Duan X. Mechanisms and treatments of peripheral nerve injury[J]. Ann Plast Surg, 2023, 91(2): 313-318. DOI: 10.1097/sap.0000000000003480.
[13]
Xu J, Ruan X. Schwann cell autotransplantation for the treatment of peripheral nerve injury[J]. Life Sci, 2024, 358: 123129. DOI: 10.1016/j.lfs.2024.123129.
[14]
Khaled MM, Ibrahium AM, Abdelgalil AI, et al. Regenerative strategies in treatment of peripheral nerve injuries in different animal models[J]. Tissue Eng Regen Med, 2023, 20(6): 839-877. DOI: 10.1007/s13770-023-00559-4.
[15]
Taisescu O, Dinescu VC, Rotaru-Zavaleanu AD, et al. Hydrogels for peripheral nerve repair: emerging materials and therapeutic applications[J]. Gels, 2025, 11(2): 126. DOI: 10.3390/gels11020126.
[16]
Xu S, Tang X, Wang M, et al. Stimuli-responsive hydrogels composed of modified cellulose nanocrystal and gelatin with oriented channels for guiding axonal myelination[J]. Carbohydr Polym, 2025, 356: 123402. DOI: 10.1016/j.carbpol.2025.123402.
[17]
Li D, Guo Z, Bai M, et al. Engineered hybrid exosomes responsive to reactive oxygen species target the treatment of spinal cord injury by repairing mitochondrial damage and promoting neuronal function recovery[J]. Chemical Engineering Journal, 2025, 507: 160669. DOI: 10.1016/j.cej.2025.160669.
[18]
Dong X, Zhang H, Duan P, et al. An injectable and adaptable hydrogen sulfide delivery system for modulating neuroregenerative microenvironment[J]. Sci Adv, 2023, 9(51): eadi1078. DOI: 10.1126/sciadv.adi1078.
[19]
Zhang M, An H, Zhang F, et al. Prospects of using chitosan-based biopolymers in the treatment of peripheral nerve injuries[J]. Int J Mol Sci, 2023, 24(16): 12956. DOI: 10.3390/ijms241612956.
[20]
隋曌,彭凤,余凯, 等. 吸附NT-3的3D打印胶原蛋白/壳聚糖支架改善脊髓损伤后的运动功能 [J]. 中华神经创伤外科电子杂志, 2021, 7(6): 331-338. DOI: 10.3877/cma.j.issn.2095-9141.2021.06.003.
[21]
Jiang Y, Li S, Chang M, et al. Acetylated chitosan scaffolds modulate the micro-environment and promote peripheral nerve regeneration through macrophage TLR2/4 pathway activation[J]. Mater Today Bio, 2025, 35: 102376. DOI: 10.1016/j.mtbio.2025.102376.
[22]
Sun H, Zhang W, Xie J, et al. IFE and dynamic quenching mediated fluorescent sensing of Cr(Ⅵ) based on nitrogen-doped biomass carbon dots[J]. Environ Res, 2025, 286(Pt 3): 123024. DOI: 10.1016/j.envres.2025.123024.
[23]
Meng YQ, Shi YN, Zhu YP, et al. Recent trends in preparation and biomedical applications of iron oxide nanoparticles[J]. J Nanobiotechnology, 2024, 22(1): 24. DOI: 10.1186/s12951-023-02235-0.
[24]
Qi C, Wang H, Yang A, et al. Facile fabrication of highly fluorescent N-doped carbon quantum dots using an ultrasonic-assisted hydrothermal method: optical properties and cell imaging[J]. ACS Omega, 2021, 6(48): 32904-32916. DOI: 10.1021/acsomega.1c04903.
[25]
Dong X, Zhang H, Su J, et al. An injectable and modular NO-adaptive delivery system for modulating regenerative microenvironment in long-segment nerve injury[J]. Adv Mater, 2026, 38(9): e10948. DOI: 10.1002/adma.202510948.
[26]
Ikeda Y, Nakamura H, Ohsaki S, et al. Direct translocation of a negatively charged nanoparticle across a negatively charged model cell membrane[J]. Phys Chem Chem Phys, 2021, 23(17): 10591-10599. DOI: 10.1039/d0cp06278b.
[27]
Agrawal N, Bhagel D, Mishra P, et al. Post-synthetic modification of graphene quantum dots bestows enhanced biosensing and antibiofilm ability: efficiency facet[J]. RSC Adv, 2022, 12(20): 12310-12320. DOI: 10.1039/d2ra00494a.
[28]
Ziaee N, Farhadian N, Abnous K, et al. Dual targeting of Mg/N doped-carbon quantum dots with folic and hyaluronic acid for targeted drug delivery and cell imaging[J]. Biomed Pharmacother, 2023, 164: 114971. DOI: 10.1016/j.biopha.2023.114971.
[29]
Wang Q, Wei Y, Yin X, et al. Engineered PVDF/PLCL/PEDOT dual electroactive nerve conduit to mediate peripheral nerve regeneration by modulating the immune microenvironment[J]. Adv Func Mater, 2024, 34(28): 2400217. DOI: 10.1002/adfm.202400217.
